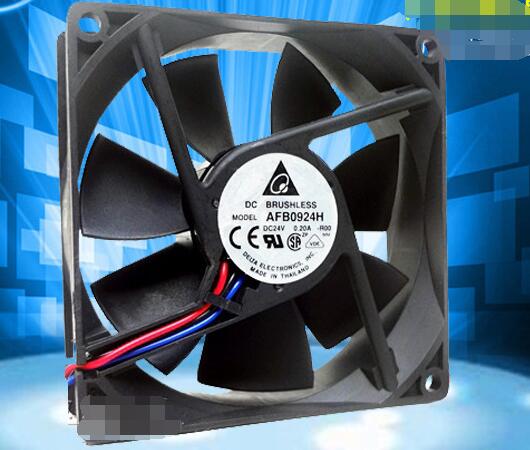

DELTA 9225 AFB0924H : 24V 0.20A 3wires cooling fan
|
Manufacturer |
DELTA |
|
Part number |
AFB0924H |
|
other name |
603-1069,AFBO924H, |
|
AC/DC |
DC Fans |
|
Fan Type |
Axial |
|
Size |
92 mm x 92 mm x 25 mm |
|
Voltage |
24V |
|
Current |
0.2A |
|
PoWer |
2.4W |
|
Termination |
3 wires |
|
Speed (RPM) |
2850 |
|
Air Flow |
51.2 CFM (1.45 m³/min) |
|
Bearing |
Ball |
|
Shape |
Square |
|
Series |
AFB |
|
Static Pressure |
0.177 in H2O (44.1 Pa) |
|
Noise |
34 dBA |
|
Blade_material |
Plastic |
|
Frame_material |
Plastic |
|
Notes, Comments & Additional Information |
Abctay recommends ordering by part number whenever possible. |
