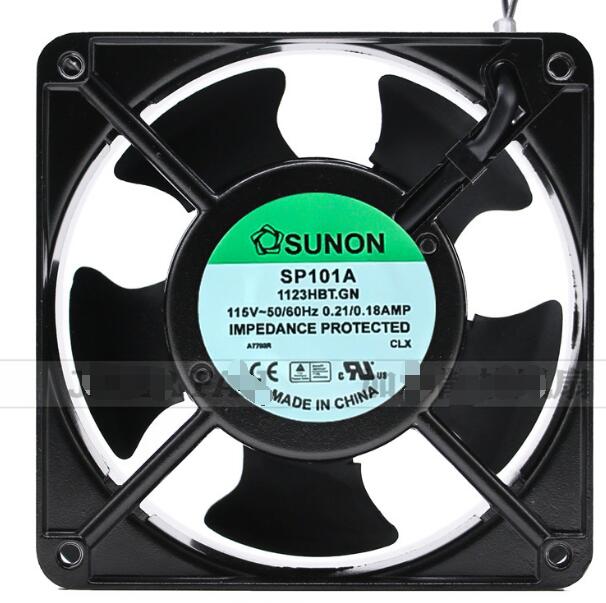

SUNON 12038 SP101A 1123HBT.GN : 115V 20/18W cooling fan
|
Manufacturer |
Sunon |
|
Part number |
SP101A 1123HBT.GN |
|
other name |
259-1387,S115C0AMB1T-GRS,SP101A 1123HBT.GN,SP101A1123HBT.GN,SP101A1123HBTGN,SP1O1A 1123HBT.GN, |
|
AC/DC |
AC Fans |
|
Fan Type |
Axial |
|
Size |
120 mm x 120 mm x 38 mm |
|
Voltage |
115V |
|
Current |
0.18A |
|
PoWer |
20/18W |
|
Termination |
2 wires |
|
Speed (RPM) |
3050 |
|
Air Flow |
107.0 CFM (3.03 m³/min) |
|
Bearing |
Ball |
|
Shape |
Square |
|
Series |
SP |
|
Static Pressure |
0.320 in H2O (79.7 Pa) |
|
Noise |
50 dBA |
|
Blade_material |
Polybutylene Terephthalate (PBT) |
|
Frame_material |
Aluminum |
|
Notes, Comments & Additional Information |
Abctay recommends ordering by part number whenever possible |
