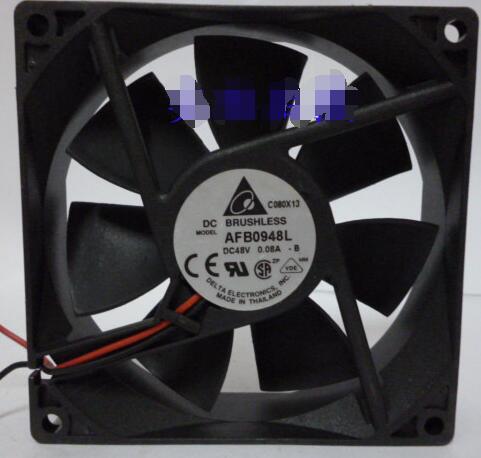

Delta 9225 AFB0948L 48V 0.08A DC Brushless Fan,Cooling Fan
|
Manufacturer |
DELTA |
|
Part number |
AFB0948L |
|
other name |
603-1323,AFBO948L, |
|
AC/DC |
DC Fans |
|
Fan Type |
Axial |
|
Size |
92 mm x 92 mm x 25 mm |
|
Voltage |
48V |
|
Current |
0.08A |
|
PoWer |
2.4W |
|
Termination |
2 wires |
|
Speed (RPM) |
2100 |
|
Air Flow |
37.1 CFM (1.05 m³/min) |
|
Bearing |
Ball |
|
Shape |
Square |
|
Series |
AFB |
|
Static Pressure |
0.100 in H2O (24.9 Pa) |
|
Noise |
25 dBA |
|
Blade_material |
Plastic |
|
Frame_material |
Plastic |
|
Notes, Comments & Additional Information |
Abctay recommends ordering by part number whenever possible |
